These standard size LED seven segment displays can show the numbers from 0 to 9. These devices use an industry standard size package and pinout.Features a right hand decimal point.
Features
• Design flexibility
• overflow character
• Categorized for luminous intensity
• High light output
• High peak current
• Excellent for long digit string multiplexing
• Sunlight viewable

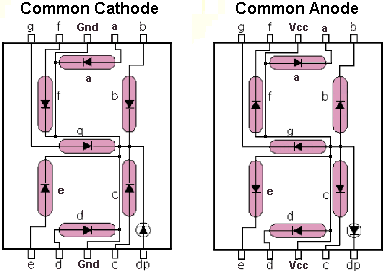

Chart for showing 0-9 in a CC 7 segment display:
Digit Dp g f e d c b a Hex value
1 0 0 0 0 0 1 1 0 0x06
2 0 1 0 1 1 0 1 1 0x5B
3 0 1 0 0 1 1 1 1 0x4F
4 0 1 1 0 0 1 1 0 0x66
5 0 1 1 0 1 1 0 1 0x6D
6 0 1 1 1 1 1 0 1 0x7D
7 0 0 0 0 0 1 1 1 0x07
8 0 1 1 1 1 1 1 1 0x7F
9 0 1 1 0 1 1 1 1 0x6F
0 0 0 1 1 1 1 1 1 0x3F
