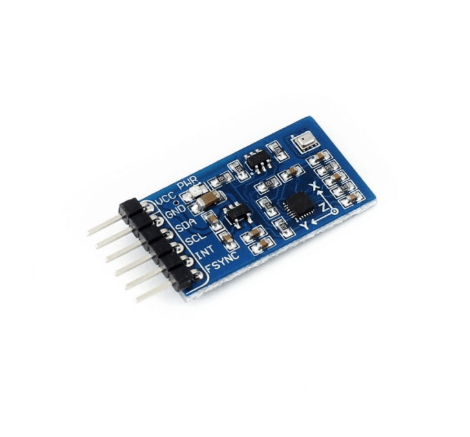

Name: 10 DOF IMU Sensor (C)
SKU: 7795
Price: 1345.00 BDT
Availability: InStock

Description

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

Features
MPU9255: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
Comparing with MPU6050, it is lower power consumption, and more suitable for wearable devices
BMP280: barometric pressure sensor
Embedded temperature sensor for temperature compensation
Comparing with BMP180, it is lower power consumption, and higher performance
You can get the 10 DOF data through I2C interface
Click here to know more about this product.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “10 DOF IMU Sensor (C)”

Shipping & Delivery

Conditions

You can get the product from our office
Home delivery is also available
Delivery charge: Inside Dhaka-60 Taka, outside Dhaka-99 Taka
We will send a custom made invoice with discount amount at the time of delivery.
No existing offer will be applicable if customer avails this offer.
Once the product is purchased,it will not be refundable
Your booking does not always guarantee product delivery. Product delivery is entirely subjected to availability of stock
Color of the products may slightly vary due to photography, lighting sources or your monitor setting/ PC resolution
Product delivery may be interrupted or delayed due to natural disaster or in case of political unrest
In case of delivery outside Dhaka, customers may have to collect certain products from the nearby courier service office.

Specification

Specifications
Power: 3.3V~5.5V (internal voltage regulation with low dropout)
Accelerometer
Resolution: 16 bit
Measurement range (configurable): ±2, ±4, ±8, ±16g
Operating current: 450uA
Gyroscope
Resolution: 16 bit
Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
Operating current: 3.2mA
Compass/Magnetometer
Resolution (configurable): 14 or 16 bit
Measurement range: ±4800µT
Operating current: 280uA
Barometric pressure sensor
Barometric resolution: 0.0016hPa
Temperature resolution: 0.01°C
Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
Operating current (1Hz update rate, ultra-low power mode): 2.8uA
